LCZ puts it self forward in the market place in Italy and the rest of the world with many years of experience in constructings team equipment and in creating steam installations for industrial use.
The development of steam technology in the creation of industrial installations and systemsis the primary objective behind the LCZ quality system.
This wide range of steam generators can satisfy any type of market demand. The tecnica solutions used, together with the excellent performance of allour generators, provide the maximum guarantee of reliability as a function of industrial use.
LCZ makes generators that produce steam at rates from 50 kg per hour to 25,000 kg per hour, with a working pressure of up to 18 bar. The models are as follows:
- TA (water-tube) and TF (fire-tube), from 50 kg to 400 kg of steam per hour
- IF flame-inversion fire-tube, from 650 kg to 6000 kg of steam per hour
- CS and FTB (three-pass) from 3750 kg to 25000 kg of steam per hour
- Super-heated water generators
- Single-tube steam generators
- Electric steam generators

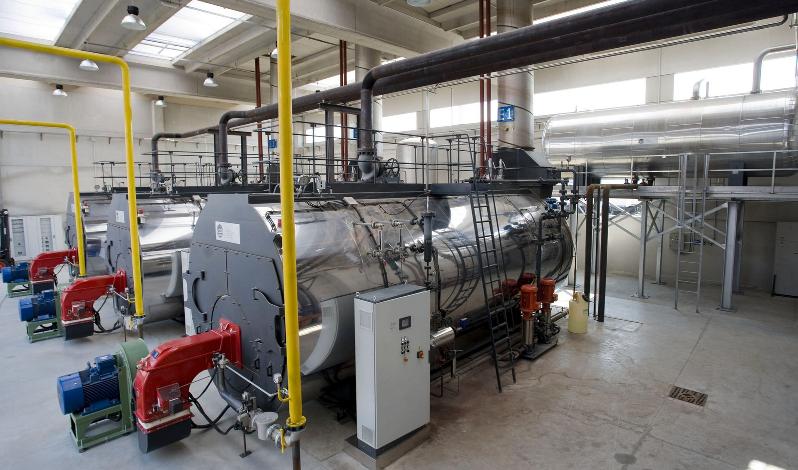

FIRETUBE STEAM BOILER
The CS FTB steam generator is three effectives moke turns, passing flame and wet bottom horizontal semi-fixed type.
Itis characterised by heat rimmed tube sheet stowards the furnace and also the inversion chamber, in order to exclude the typical mechanical tensions of other constructive forms and absorb the several mechanical dilatations to the various temperatures of exercise. The great quantity of water allows the satisfaction of instantaneousin creases of steam requests without influencing the correct and continuous functioning of users, the wide evaporating mirror avoids the drag of water drops also to wards sudden steam takings.
In practice, the steam producedis “dry” and allows a considerable Energy savin greducing the returns in the boiler through the steam unloader present in the installation. The furnace, great in diameter and volume, is designed in order to have a low thermal charge: the polluting substances, contained in rivers, are reduced to the minimum, warranting an optimal functioning both with liquid and with gaseo us combustibles.
The functioning of the generator is completely automatic and the cleaning and maintenance operations of the internal parts of the generator are made easier thanks to the use of double joint hinged front doors, which can be opened without the removal of the burner and back doors blocked by brass bolts. The insulating,shell is formed by high-density huge thick ness mineral wool air beds with external finish in stainless-steel polished until it shines. Itis a high-performance monoblockunit with original tecnica solutions, designed and realized to give the maximum warrantee of reliability, duration and management, ensuring the maximum economy of use with 90% efficiency at high and low thermal charges.
