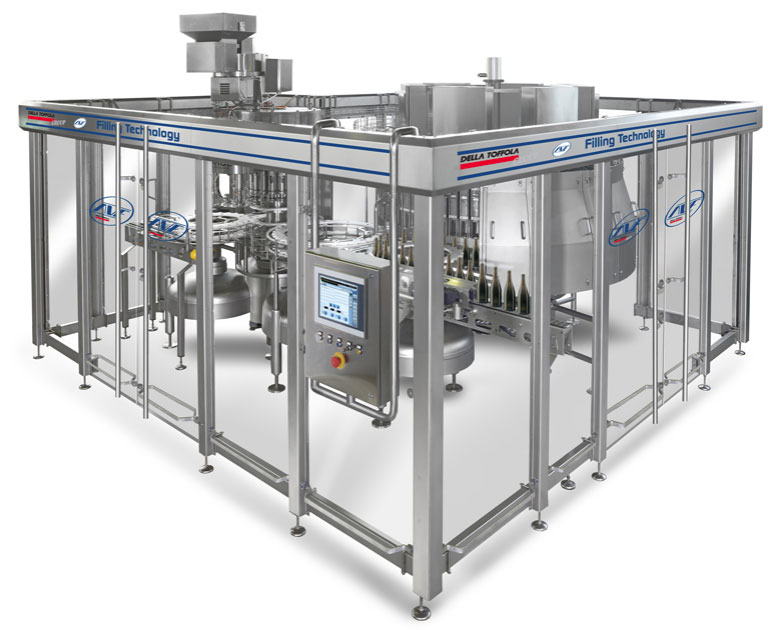

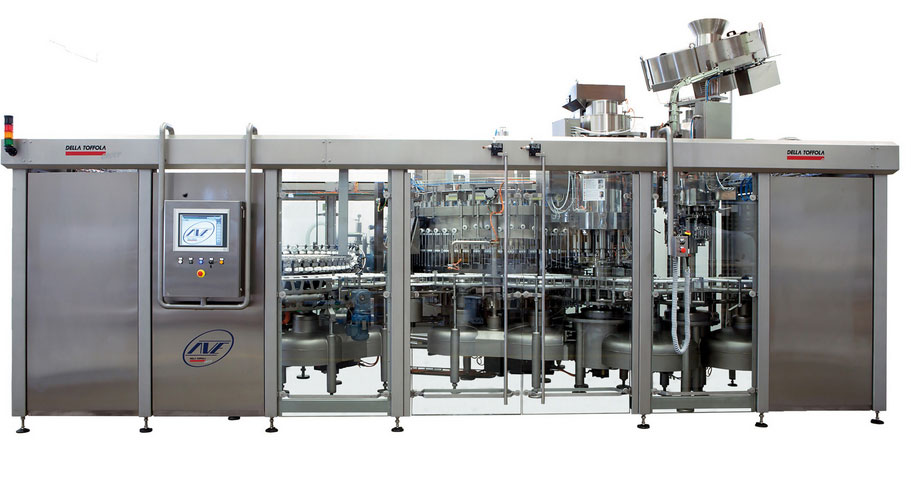

SWAN new short-pipe electro-pneumatic isobaric fillers are AVE Technologies’ latest novelty standing out for their special features of functionality and construction quality.
These plants are suitable for throughput up to 80,000 bottle/h and are engineered upon “clean design” philosophy; in addition, stainless steel materials are also used to produce all component. External pressurized tank is equipped with a variable speed restart pump for overall control on the pressure of the filling head.
The machine manages three different process gases, such as: pure CO2 at filling pressure; CO2 impure from the bottle during low pressure isobaric filling phase to vacuum wash the bottles and pressurization, and vacuum making for bottle predischarge and decompression.
The modular isobaric valve runs at two filling speeds and is provided with short or long pipe to perform filling from the bottom. A dome-shaped board is used to convey the bottles and ease water and glass shards drainage. Modular structure with clockwise and anticlockwise configuration.
Setting for rinser and screw capper, or crown capper as an alternative in case of simultaneous us of more cappers. Board handling of bottle conveying by means of synchronized brushless motor with main motor of the filling carrousel. Bottle synchronizing screw runs with fix centre with the varying of the diameter of the bottles, and it is mounted on a tilting structure as to ease change of formats. Stars and bottle guiding equipment are in stainless steel while wear outline is in rubber as to ease the cleaning of the handling system.
Machines are also equipped with dismountable shields with tilted conic-shape outline, to avoid glass shards from bouncing back on the valve after possible explosion of the bottles. Bottle lifting stainless steel jacks are fully pressurized as to avoid water or other impurities from being sucked in.
SWAN is the latest and most qualified technological innovation from AVE Technologies, a company member of Della Toffola Group.
Daniele Toni
